Range: 49.2” (1.25m)

Accuracy: 0.125” (3mm)

Resolution: 0.019” (0.5mm)

Dead band: 2” (5cm)

Beam width: 2” (5cm)

Configuration: WebCal? PC, Windows®, USB 2.0

Memory: Non-volatile

Supply voltage: 24 VDC (loop)

Consumption: 0.5W

Loop resist.: 400Ω max

Signal output: 4-20 mA, two-wire

Signal invert: 4-20 mA or 20-4mA

Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last

Contact type: (4) SPST relays, 1A

Contact fail-safe: Power loss: Hold last, Power on: Open, close or hold last

Hysteresis: Selectable

Process temp.: F: 20° to 140°, C: -7° to 60°

Temp. comp.: Automatic

Ambient temp.: F: -31° to 140°, C: -35° to 60°

Pressure: MWP = 30 PSI (2 bar)

Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible

Encl. material: Polycarbonate

Strain relief mat.: Santoprene

Trans. material: PVDF

Cable jacket mat.: Polyurethane

Cable type: 9-conductor, shielded

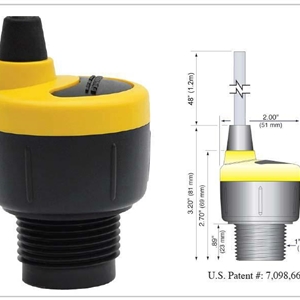

Cable length: 48” (1.2m)

Process mount: 1” NPT (1” G)

Mount gasket: Viton®

Classification: General purpose

Compliance: CE, RoHS

Approvals: cFMus
